Traefik Setup and SSL Configuration

This guide covers deploying Traefik as your Kubernetes ingress controller and configuring automated SSL certificate management with Let’s Encrypt.

Deploying Traefik

Install Helm Package Manager for Kubernetes

curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh

Create Namespace for Traefik

kubectl create namespace traefik

Add Helm Repository and Update

helm repo add traefik https://helm.traefik.io/traefik
helm repo update

Clone TechnoTim Launchpad Repository

git clone https://github.com/techno-tim/launchpad

Configure values.yaml for Traefik

Open the launchpad/kubernetes/traefik-cert-manager/ directory and check values.yaml. Most configurations are already set; you only need to specify the IP for the LoadBalancer service. Choose an IP from the MetalLB range defined in your setup.

Install Traefik Using Helm

helm install --namespace=traefik traefik traefik/traefik --values=values.yaml

Verify Deployment

kubectl get svc --all-namespaces -o wide

Expected output:

NAMESPACE          NAME                              TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                                    AGE     SELECTOR
calico-system      calico-typha                      ClusterIP      10.43.80.131    <none>        5473/TCP                                   2d20h   k8s-app=calico-typha
traefik            traefik                           LoadBalancer   10.43.185.67    10.57.57.80   80:32195/TCP,443:31598/TCP,443:31598/UDP   53s     app.kubernetes.io/instance=traefik,app.kubernetes.io/name=traefik

Apply Middleware

kubectl apply -f default-headers.yaml
kubectl get middleware

Expected output:

NAME              AGE
default-headers   4s

Deploying Traefik Dashboard

Install htpasswd

sudo apt-get update
sudo apt-get install apache2-utils

Generate a Base64-Encoded Credential

htpasswd -nb merox password | openssl base64

Copy the generated password hash and replace abc123== with it in dashboard/secret-dashboard.yaml:

1
---
2
apiVersion: v1
3
kind: Secret
4
metadata:
5
  name: traefik-dashboard-auth
6
  namespace: traefik
7
type: Opaque
8
data:
9
  users: abc123==

Apply secret:

kubectl apply -f secret-dashboard.yaml

Configure DNS Resolver

Ensure that your DNS server points to the MetalLB IP specified in values.yaml.

Example entry for pfSense DNS Resolver:

dashboard/ingress.yaml:

routes:
  - match: Host(`traefik.k3s.your.domain`)

Apply Kubernetes Resources

From traefik/dashboard folder:

kubectl apply -f secret-dashboard.yaml
kubectl get secrets --namespace traefik
kubectl apply -f middleware.yaml
kubectl apply -f ingress.yaml

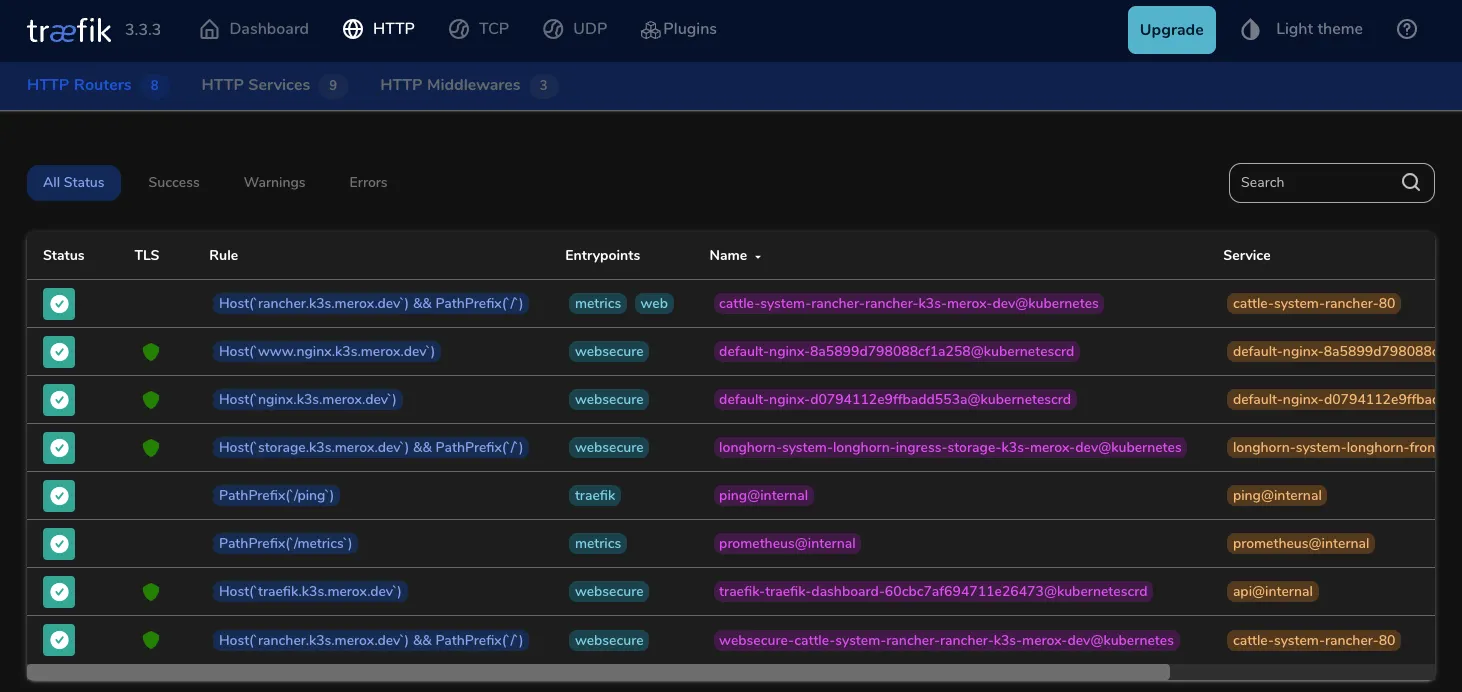

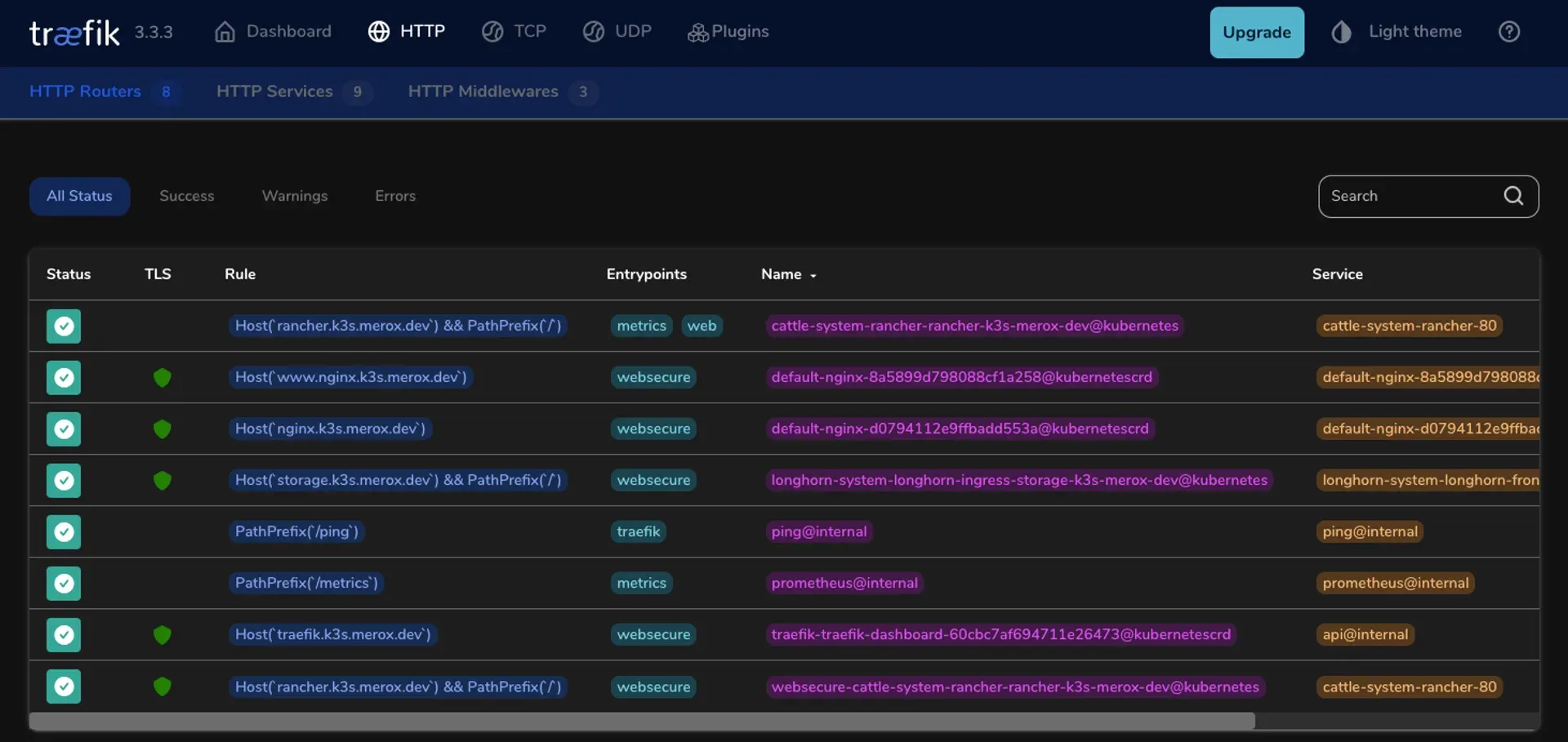

At this point, you should be able to access the DNS entry you created. However, it will use a self-signed SSL certificate generated by Traefik. In the next steps, we will configure Let’s Encrypt certificates using Cloudflare as the provider.

Deploying Cert-Manager

From traefik-cert-manager/cert-manager folder:

Add Jetstack Helm Repository

helm repo add jetstack https://charts.jetstack.io
helm repo update

Create Namespace for Cert-Manager

kubectl create namespace cert-manager

Apply CRDs (Custom Resource Definitions)

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.0/cert-manager.crds.yaml

Install Cert-Manager Using Helm

helm install cert-manager jetstack/cert-manager --namespace cert-manager --values=values.yaml --version v1.17.0

Apply Cloudflare API Secret

Make sure you generate the correct API token if using Cloudflare (use an API Token, not a global key).

kubectl apply -f issuers/secret-cf-token.yaml

Deploy Production Certificates

Fields to be edited before:

issuers/letsencrypt-production.yaml: email, dnsZones

certificates/production/your-domain-com.yaml: name, secretName, commonName, dnsNames

kubectl apply -f values.yaml
kubectl apply -f issuers/letsencrypt-production.yaml
kubectl apply -f certificates/production/your-domain-com.yaml

Verify Logs and Challenges

kubectl logs -n cert-manager -f cert-manager-(your-instance-name)
kubectl get challenges

With these steps completed, your K3s cluster now runs Traefik as an ingress controller, supports HTTPS with Let’s Encrypt, and manages certificates automatically. This setup ensures secure traffic routing and efficient load balancing for your Kubernetes applications.

Next Steps

Proceed to the Cluster Management guide to deploy Rancher for cluster administration and Longhorn for persistent storage.
